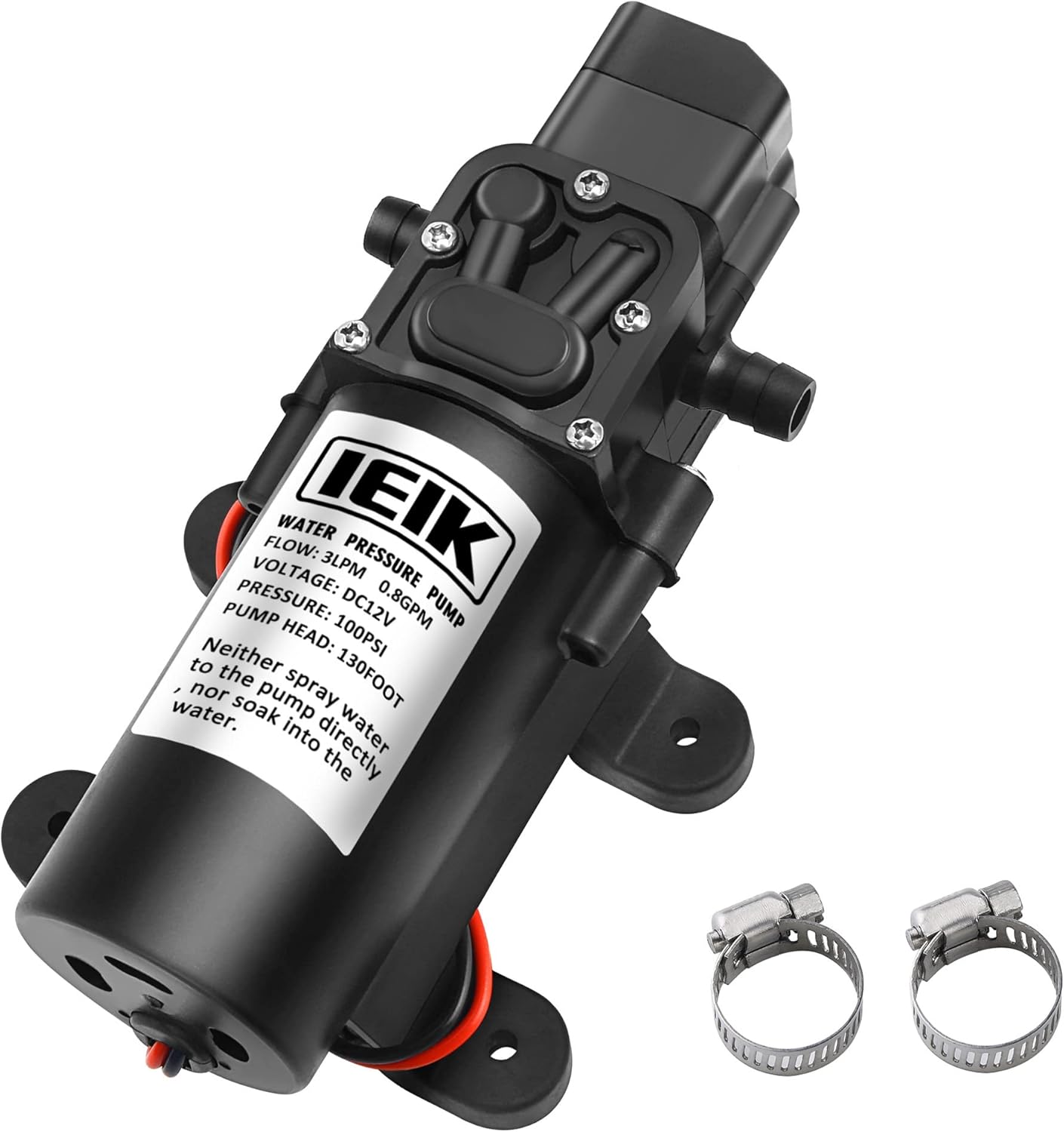

12 Volt Diaphragm Pump 3LPM 0.8 GPM 100PSI Self Priming Sprayer Pump 12V DC Fresh Water Pump Water Pressure Switch for RV Camper Marine Boat Lawn (30W)

Overview

• Brand : IEIK
• Color : 12v 30w(3/8")
• Material : Stainless Steel
• Style : Diaphragm

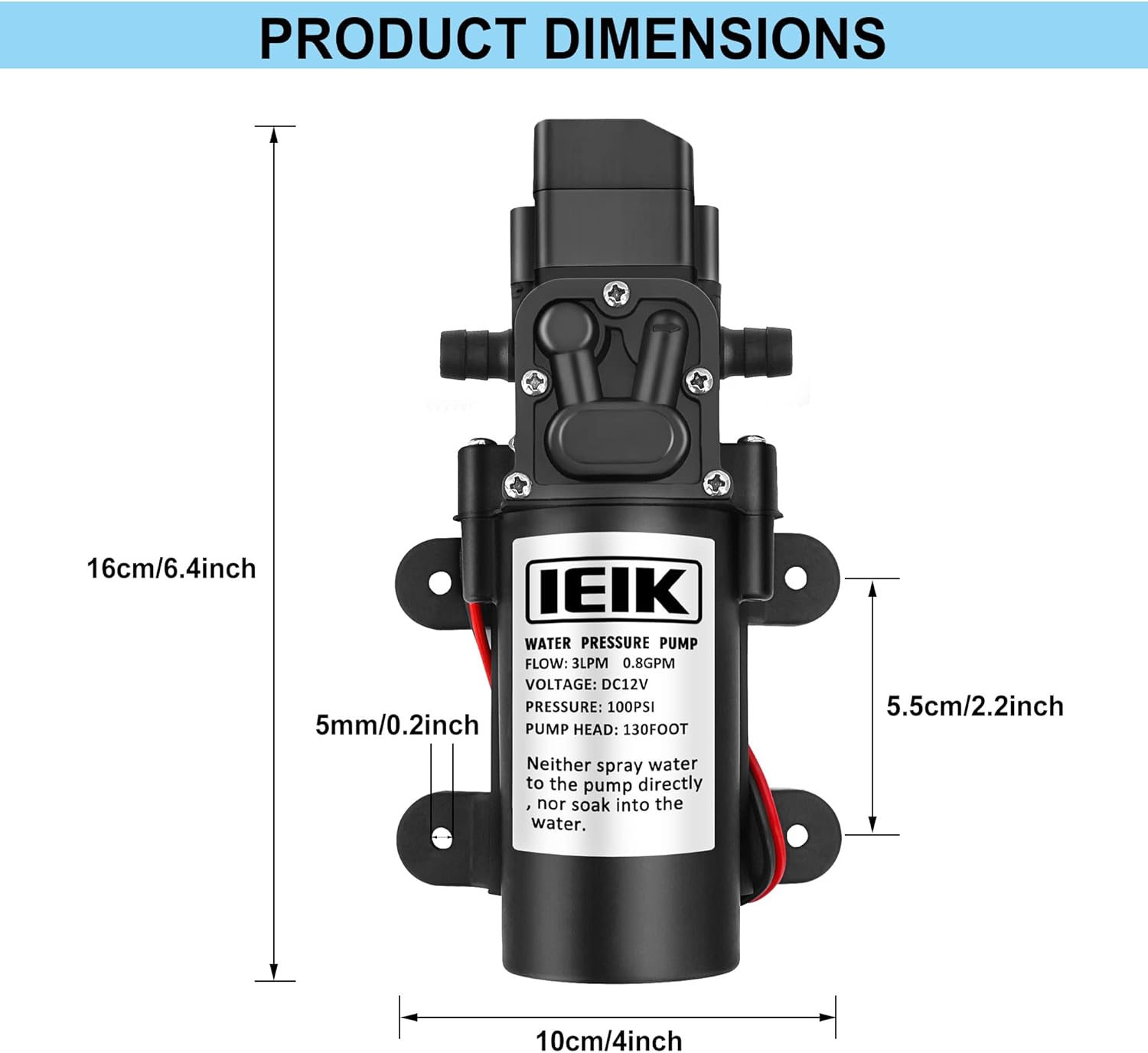

• Product Dimensions : 4.33"L x 7.48"W x 2.36"H
• Power Source : Battery Powered
• Item Weight : 650 Grams
• Maximum Flow Rate : 3 Liters Per Minute
• Maximum Lifting Height : 130 Feet
• Voltage : 12 Volts

About this item

• Features: The IEIK diaphragm pump is equipped with a power of 30W, a pressure of 100Psi, and a water flow rate of 3L/PM 0.8GPM. If you are concerned about the sound of the water pump being too loud, this hydraulic diaphragm pump will be a good choice. Compared with the 60W water pressure diaphragm pump, its pumping speed is slightly lower, but it can still meet most of the pressure requirements.
• Function: When the IEIK pressure diaphragm pump is powered on, opening the valve will start working, and closing the valve will automatically stop working. The IEIK pressure diaphragm pump is equipped with a protective device, which can effectively prevent the diaphragm pump from melting or burning when overloaded or blocked. IEIK water pressure pumps can not only help you solve water pressure problems, but also ensure safety during operation.

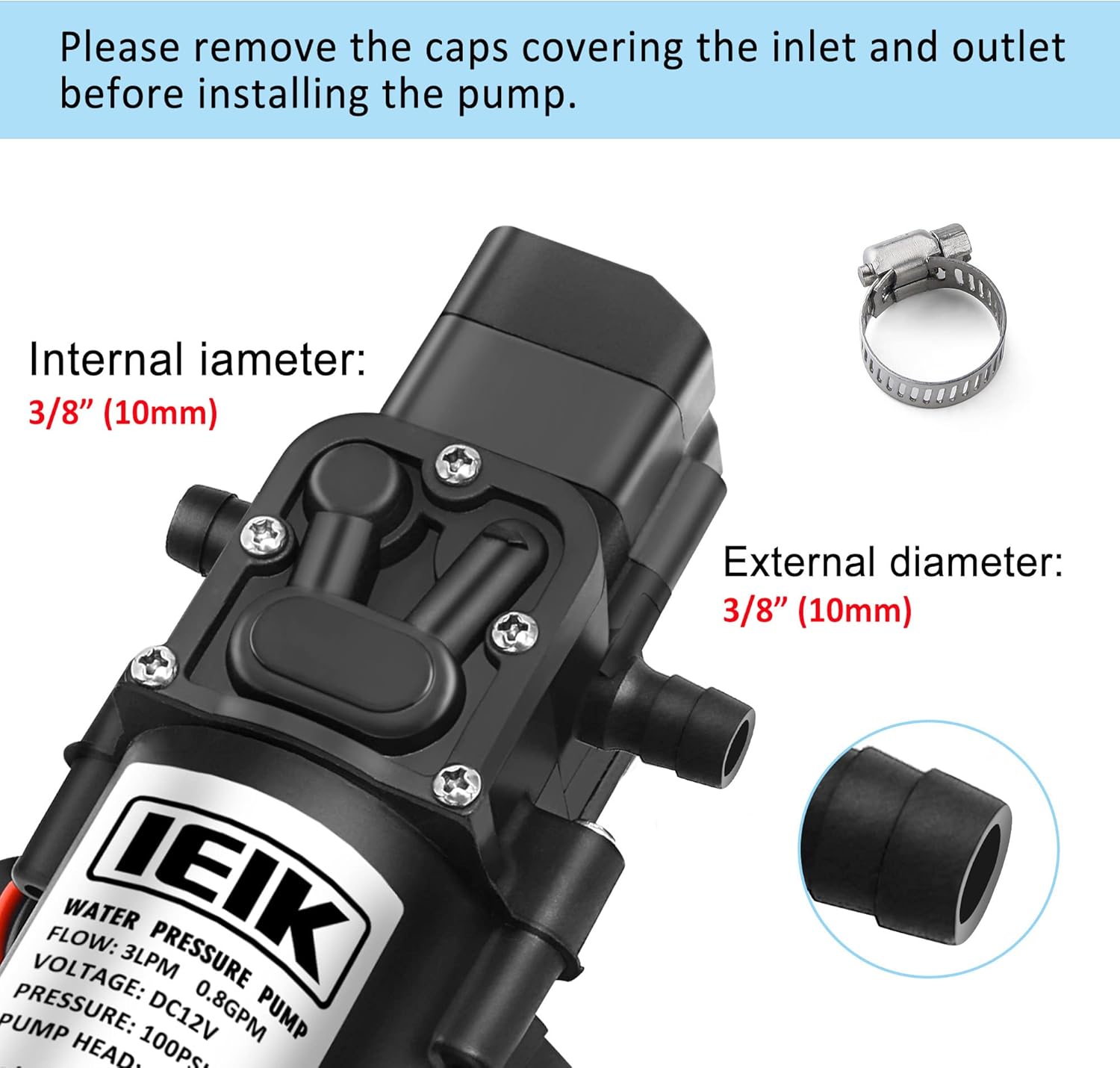

• Parameters: Vertical suction stroke of water pressure diaphragm pump 3.3ft, inlet pressure 0.2Mpa, rated pressure 0.7Mpa, flow rate (maximum) 3L/min, size 16.5 cx 9.5 cmx 5.5cm, water pipe interface 3/8-inch hose barb ports. The pressure regulation function of the water pressure pump is not explicitly stated in use. In order to achieve the best working condition of the water pump and improve the user experience, we have cancelled the pressure regulation function in the design.

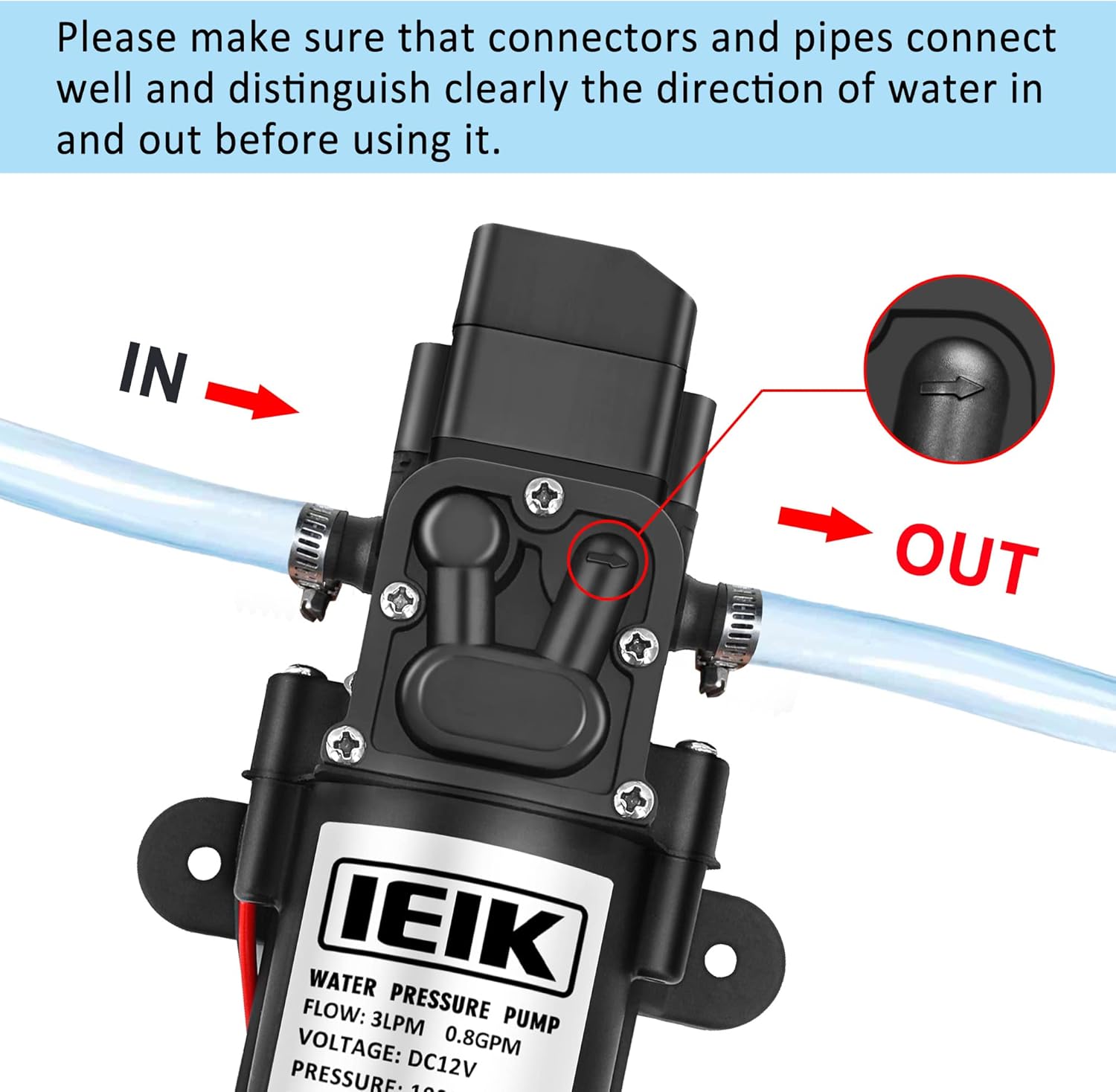

• Application: Before formal use, please connect the water inlet to the pressurized water supply pipe, and after a few minutes of power on trial operation, move it to the working environment. Please use DC12V 2.5A-4A power supply. IEIK fresh water pressure diaphragm pump can be used for automatic pump, ocean, ship, camper, RV, agricultural spray (weak acid and weak base) and truck.
• Note: Please test according to the requirements and use a suitable power source before use. IEI diaphragm pump is not a submersible pump, please pay attention to waterproofing and prevent short circuits. Diaphragm pumps are tested before leaving the factory, and there may be some water inside the pump. If you encounter any problems during use, please feel free to contact us, and we will answer relevant technical questions as soon as possible.
• Tip: When the water pump vibrates and makes a dry noise but does not work after being powered on, please use an air compressor to blow gas from the water pump inlet to discharge the gas from the outlet, and it can work normally.
